Leak Sealing Bags +



Mini-Leak sealing bag 10x10 Mini-Leak sealing bag 18x18 Mini-Leak sealing bag 25x25
Type LD 10x10 LD 18x18 LD 25x25
ID-Nr. 812.366.7 812.367.5 812.368.3
Size 15 x 15 x 1,2 cm 22,5 x 22,5 x 1,2 cm 30 x 30 x 1,2 cm
Sealing surface 10 cm x 10 cm 18 cm x 18 cm 25 cm x 25 cm
Sealing pressure 1,4 bar 1,4 bar 1,4 bar
Nominal content 1,2 l 4,5 l 10,5 l
Weight 0,36 kg 0,81 kg 1,37 kg

Leak sealing surface Leak sealing surface with screws
Type LD 45x23 LDS 45x23
ID-Nr. 812.369.1 812.370.5
Size 62 cm x 30 cm x 2 cm 62 cm x 30 cm x 2 cm
Sealing surface 45 cm x 23,5 cm 45 cm x 23 cm
Sealing pressure 1,4 bar 1,4 bar
Nominal content 20 l 20 l
Weight 4,8 kg 6,2 kg

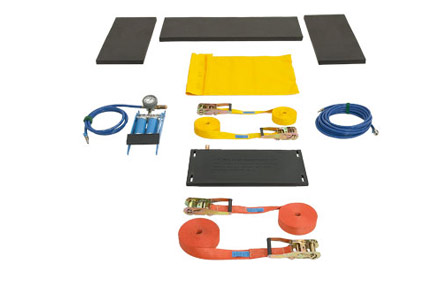

Pipe sealing bag 2,5 bar without bypass

Typ ID-Nr. Pieces Weight
Leak sealing bag LD, 45x23 cm LD 45 x 23 812.369.1 1 4,8 kg
Foot pump 1,5 bar with pressure relief valve   812.391.8 1 2,5 kg
Infl ation hose, blue , 10 m   813.168.6 1 1,2 kg
Ratchet extension belt,10 m, yellow   812.394.2 2 2,0 kg
Ratchet extension belt,10 m, orange   812.395.0 2 2,0 kg
Sealing plate, 600 x 300 x 30mm,CR   812.396.9 2 3,3 kg
Sealing plate, 1000 x 300 x 30mm,CR   812.397.7 1 5,4 kg
Protection cover for LD 45x23   813.169.4 1 0,5 kg




Typ ID-Nr. Pieces Weight
Mini-leakage sealing bag, 10x10 cm LD 10x10 812.366.7 1 0,4 kg
Mini-leakage sealing bag, 18x18 cm LD 18x18 812.367.5 1 0,8 kg
Mini-leakage sealing bag, 25x25 cm LD 25x25 812.368.3 1 1,4 kg
Foot pump 1,5 bar with pressure relief valve   812.391.8 1 2,5 kg
Belt, 1,5m, with velcro, yellow   812.392.6 2 0,2 kg
Belt, 3,0m, with velcro, yellow   812.393.4 3 0,4 kg
Transport box, 600mm x 400mm x 135mm   813.159.7 1 5,0 kg

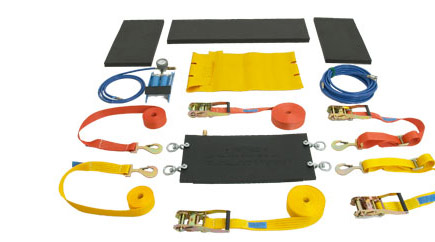

SET LDS 45 x 23 1,5 bar

Typ ID-Nr. Pieces Weight
Leak sealing bag LDS , 45x23 cm LDS 45 x 23 812.370.5 1 6,2 kg
Foot pump 1,5 bar with pressure relief valve   812.391.8 1 2,5 kg
Inflation hose, blue, 10 m   813.168.6 1 1,2 kg
Ratchet belt, 2m, yellow   812.399.3 1 1,5 kg
Ratchet belt, 2m, orange   812.398.5 1 1,5 kg
Fastening belt, 5m, yellow   812.401.9 1 0,8 kg
Fastening belt, 5m, orange   812.400.0 1 0,8 kg
Ratchet extension belt,10 m, yellow   812.394.2 1 2,0 kg
Ratchet extension belt,10 m, orange   812.395.0 1 2,0 kg
Sealing plate, 600 x 300 x 30mm,CR   812.396.9 2 3,3 kg
Sealing plate, 1000 x 300 x 30mm,CR   812.397.7 1 5,4 kg
Protection cover for LDS 45x23   813.170.8 1 0,5 kg
