Air Bags 1,0 Bar

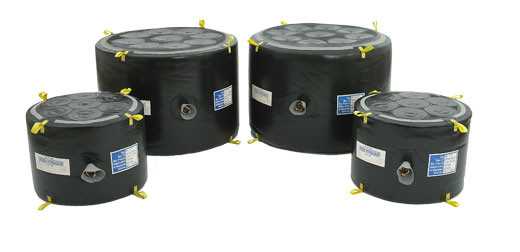

Air bag 1,0 bar +
| Type | ||||
| ID-Nr. | 812.434.5 | 812.435.3 | 812.436.1 | 812.437.0 |
| Max. lifting capacity | 3,0 t | 4,7 t | 6,7 t | 11,9 t |
| Diameter | 610 mm | 760 mm | 910 mm | 1220 mm |
| Lifting height | 430 mm | 590 mm | 610 mm | 1000 mm |
| Height empty | 50 mm | 50 mm | 50 mm | 50 mm |
| Max. air requirement | 295 l | 620 l | 900 l | 3010 l |
| Working pressure | 1,0 bar | 1,0 bar | 1,0 bar | 1,0 bar |
| Weight | 8,0 kg | 10,5 kg | 13,0 kg | 22,5 kg |

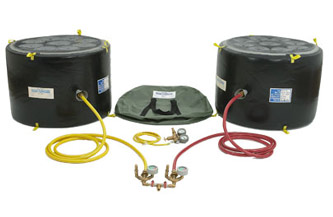

Set consists of:
2 pcs. Air bag 1,0 bar
1 pc. Packing bag for 2 air bag
2 pcs. Infl ation hose (1 pc. 5m red -
1 pc. 5 m yellow)
1 pc. 5 m yellow)
1 pc. Double deadman controller 1,0
bar plastic-design
bar plastic-design
1 pc. Repair kit
| Type | ||||
| ID-Nr. (set) | 181.953.4 | 181.952.6 | 181.951.8 | 181.950.0 |
| Max. lift. capacity / set | 6,0 t | 9,4 t | 13,4 t | 23,8 t |
| Weight / set | 21 kg | 26 kg | 31 kg | 51 kg |
