Pilgrim Radial Fit Bolts +

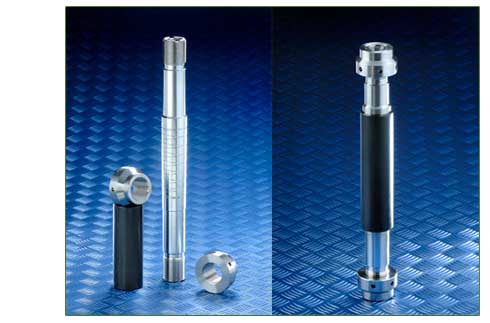

The Pilgrim Radial Fit Bolt consists of a tapered body, a matching tapered bored sleeve and two round nuts. Pilgrim Radial Fit Bolts are re-usable, reduce maintenance downtimes and are a direct retrofit replacement for conventional bolts

Specially designed to suit specific coupling geometry, the Pilgrim Radial Fit Bolt offers turbine operators a number of significant benefits. As they are installed and removed faster than conventional bolts, less time is required to split and re-build turbine couplings, bringing down outage time and costs.

Due to their precise and repeatable location, the bolts can potentially reduce the turbine vibration and coupling slippage often associated with conventional systems. The problem of bolt seizure and surface pick-up are avoided, concentricity is established and maintained even under extreme operating conditions. Once fitted there is no need for re-machining.


An innovative alternative to conventional fitted bolts
Faster and easier to install and remove
No more costly outage delays caused by bolts getting stuck in-situ

Reduced turbine vibration
Coupling slippage eliminated
Significantly lower life cycle costs


Direct retrofit
Reliability means more effective planning


No re-machining
Concentricity re-established

OEM approval
Safe and reliable
