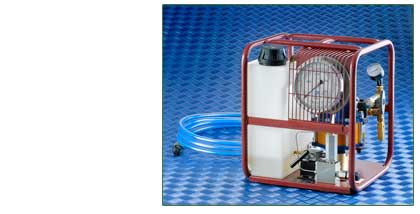

MK10 Morpress Air Driven Pump +

Lightweight efficient, compact and easy to operate, the MK10 Morpress Air Driven Pump provides instant and totally reliable hydraulic power.

The pump utilises a low pressure air supply to generate a high pressure output. This is achieved by means of a simple differential area system in which a large area air piston at low pressure produces high pressure on a small hydraulic piston

Simple air controls enables the MK10 Morpress pump to provide any intermediate pressure required within the limits of the pump outage range.

Both oil and air are filtered prior to entering the system. The MK10 Morpress pump requires only two connections, one to the air supply, the other to the hydraulic output. Simple and safe quick connect couplings and high pressure flexible hoses are used to connect the equipment being used.

The standard MK10 Morpress Air Driven Pump comprises of

air pressure regulator
air pressure gauge
air filter

air lubricator
on / off control valve
oil reservoir


SC Air/Oil intensifier unit
oil return to tank valve


pressure relief safety valve
oil pressure gauge with damping facility



Model 525 Model 535 Model 620 Model 640
Hydraulic Output

0- 1700 bar
0-25000 psi

0-3000 bar
0-40000 psi
0-1700 bar
0-25000 psi
0-3500 bar
0-50000 psi

Pressure gauge rating will vary according to customer requirements

Approx weight
with empty oil tank
21.0 kg 21.25kg 25.2kg 27.0kg

Overall dimensions 380 mm x 360 mm x 440 mm    15 ins x 14.2 ins x 17.3 ins
Reservoir Capacity 8 litres       1.8 gallons (imp)


The Morpress pump can be built to your specification.  Lower or higher pressure models, special outlet arrangements and customised gauges can all be accommodated.  Just let us know your exact requirements.
