Battle-tested NVS 14 night vision monocular meets any military
or law enforcement observational need under the darkest
conditions. This model is in service with many militaries
around the world. The device is manu factured with Gen. 2+ or
Gen. 3 standard ANVIS-size image intensifier tube. Extreme
durability combined with crisp, clear image have created its
impeccable reputation.







NVS 14 is one of the smallest and lightest products of this type,
while it is made of durable materials to meet military
specifications.



NVS 14 can be hand held, mounted on a weapon, head or helmet, includ ing PASGT helmet. An
optionalafocal lens turns monocular into 3x night vision sight.


Head mount enables user to flip the monocular from left to right eye or turn upright for unobstructed vision.
In Auto mode NVS 14 automatically switches off when turned upright. When the unit is head/helmet
mounted this feature eliminates a chance of the user being detected by greenish gleam on the face and
extends battery life.




The newest NVS 14-3 is the first mass produced 3rd generation night vision device built without US
components and thus, it is not subject to the US export restrictions.




Specifications

Magnification
Field of view
Objective F number
Objective focal length, mm
Focus range, m
Exit pupil, mm
Eye relief, mm
Dioptre adjustment range


Mechanical

Battery
Battery life, hours

Low batter indicator

OR ON indicator
Dimensions, mm
Weight, g

Environmental
Waterproof 1 m/30 minutes or up to 20m (optional)


Model:

NVS 14 HD

Generation
2+
IIT model
IIT resolution
51-54 lp/mm

Accessories:



NVS 14 with 1x lens

1x
40°
F1.17
27.5
0.25 - infinity
21
25
+5 ... -6



1xAA or 1xCR123 Lithium
Over 40 without IR, over 20 with IR
V
V
118x48x69
300

V


NVS 14 XT

NVS 14-3 HD

NVS 14-3 XT

2+
3
3
54-64 lp/mm
45-54 lp/mm
54-64 lp/mm

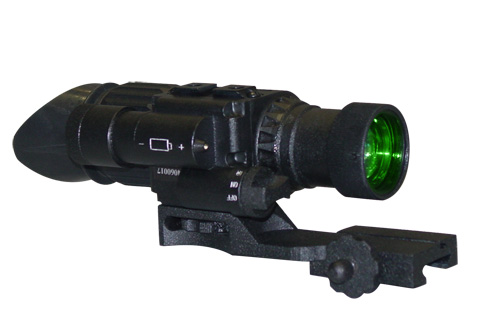

NVS W mount

Weaver (picatinny) mount for attaching NVS -14 to Military standard 1913 rails, Allows to attach the monoculars to laser range finders, Thermal imagers, tripods, rifles or any other platform with weaver mount

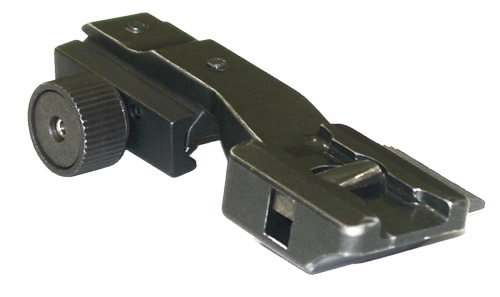

NVS QR mount

Throw lever weapon mount with accutorque wheel for attaching the NVS-14 night vision monocular to Military Standard 1913 rails. It features quickly detach mechanisms that allow convenient mounting and dismounting of the night vision device. The Mount can be completely removed from the weaver rail using the throw lever.



NVS H mount

Kevlar Helmet Mount, is a metal helmet mount for attachment of NVS-14 or NVS-7 Night Vision Goggles to a standard PASGT infantry kevlar helmet. Helmet mount fits securely onto PASGT helmet via a rugged strapping device and grooved hooks. While attached to helmet mount, night vision goggles can be positioned directly in front of user's eyes or flipped.





NVS Flip mount

Kevlar Helmet Mount, is a metal helmet mount for attachment of AN/PVS-14 or AN/PVS-7 Night Vision Goggles to a standard PASGT infantry kevlar helmet. Helmet mount fits securely onto PASGT helmet via a rugged strapping device and grooved hooks. While attached to helmet mount, night vision goggles can be positioned directly in front of user's eyes or flipped.



NVS Arm mount

Helmet/Head Mount Adapter - Attaches NVS 14 Monocular to head strap or helmet mount. Allows the user to position the monocular in front of either eye.

NVS Bridge


The Bridge connects two monoculars together for true stereo vision. A binocular configuration can be then attached to a helmet or head mount in the same way as a separate monocular. Interpupilary adjustment wheel accommodates the distance between two monoculars for the user convenience.


3X Tactical Lens

A high performance Galilean afocal telescope, the 3X Tactical Lens with F/1.5 optics mounts to the objective lens of many night vision devices with 1x magnification to convert them into 3x scopes or binoculars.



It can be screwed into PVS7 objective directly or attached quickly through removable adapters with rubber tightening rings to NVS7, NVS14, many US made PVS7, PVS14 and some other models.







Camera Adapter Assembly

This attachment allows night-time photography and recording through night vision monoculars or binoculars NVS7/NVS14. The adaptor replaces rubber eyepiece. The adapter threads fit camcorders with 37mm thread and cameras with 52 mm thread in front of the objective lens. Other equipment requires standard upgrade or downgrade optical rings, which are available in any optical store at affordable pricing.






NVS Coupler*

NVS Coupler is a clamp-on mechanical adapter with flip out feature that provides the ability to attach a night vision monocular (PVS 14/NVS 14) or goggles (PVS7/NVS7) to various day time instruments such as Laser Range Finders, Stabilized Image Binoculars, Daytime Weapon Scopes, etc.


Hard Case For NVS 14

Hard water proof military standard case.
This case can hold any of your night vision systems or laser range finder systems along with all it's accessories comfortably and securely.




* Not for sale in USA.
