NV207-G2 monocular provide ability to observe the terrain under
the
darkest conditions. NV207-G2 uses the same approach to
nightvision
taken from our most popular battle-tested NVS 14
night vision monocular
- and places it within the financial reach of
the night visionenthusiast! The
unit is one of the smallest and
lightest products of this type.
The monocular mount allows viewing with either left or right eye
with
easy flip between eyes. Two monoculars can be easily
attached
together.Two possible types of standard batteries add
flexibility to the
device usage in field environment.
Large variety of available accessories allows the unit usage as a
night
vision video / camera attachment, or as a 3x magnification
night scope
with an additional add-on lens Head mount enables
user to flip the mon
ocular from left to right eye or turn upright for
unobstructed vision. InAuto
mode unit automatically switches off
when turned upright.
| Specifications |
| Generation |
| ITT Model |
| ITT Resolution |
| Magnification |
| Field of view |
| Objective F number |
| Objective focal length, mm |
| Focus range, m |
| Exit pupil, mm |
| Eye relief, mm |
| Dioptre adjustment range |
| |
| Mechanical |
| Battery |
| Battery life, hours |
| Low battery indicator |
| IR ON indicator |
| Dimentions, mm |
| Weight, g |
|
 |
NV207-G2 with 1x lens |
2+ |
EPM207-G2-11-13 |
43-51 lp/mm |
1x |
40° |
F1.17 |
27.5 |
0.25 - infinity |
21 |
25 |
+5 to -6 |
|
|
1 AA or 1 CR123 Lithium |
over 40 without IR, over 20 with IR |
V |
V |
118x48x69 |
300 |
|
|
|

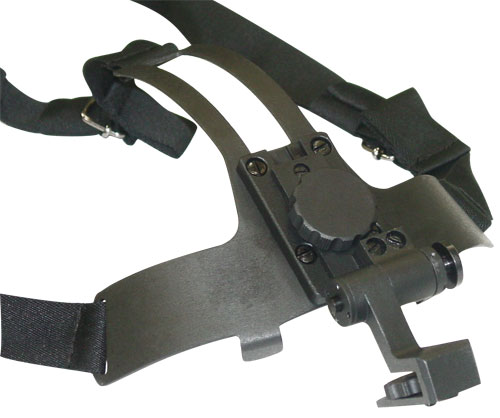

NVS H mount
Kevlar Helmet Mount, is a metal helmet mount for attachment of NVS-14 or NVS-7 Night Vision Goggles to a standard PASGT infantry kevlar helmet. Helmet mount fits securely onto PASGT helmet via a rugged strapping device and grooved hooks. While attached to helmet mount, night vision goggles can be positioned directly in front of user's eyes or flipped.
|
|

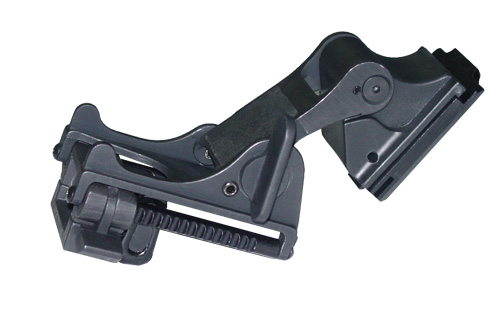

NVS Flip mount
Kevlar Helmet Mount, is a metal helmet mount for attachment of AN/PVS-14 or AN/PVS-7 Night Vision Goggles to a standard PASGT infantry kevlar helmet. Helmet mount fits securely onto PASGT helmet via a rugged strapping device and grooved hooks. While attached to helmet mount, night vision goggles can be positioned directly in front of user's eyes or flipped.
|
|

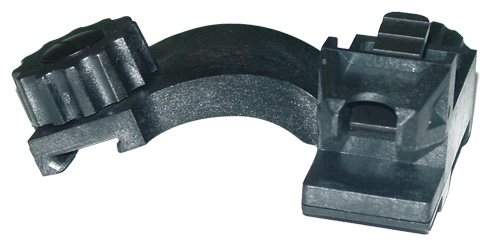

NVS Arm mount
Helmet/Head Mount Adapter - Attaches NVS 14 Monocular to head strap or helmet mount. Allows the user to position the monocular in front of either eye. |
|

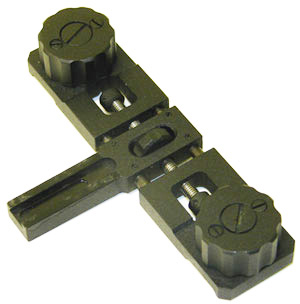

NVS Bridge
The Bridge connects two monoculars together for true stereo vision. A binocular configuration can be then attached to a helmet or head mount in the same way as a separate monocular. Interpupilary adjustment wheel accommodates the distance between two monoculars for the user convenience.
|
|

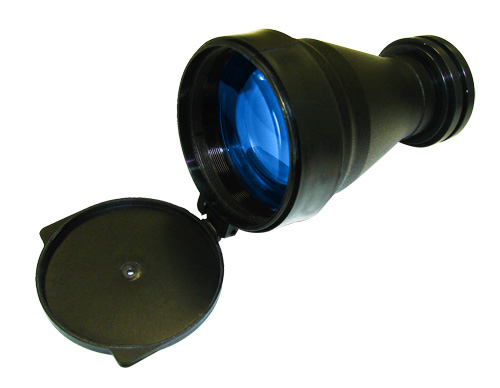

3X Tactical Lens
A high performance Galilean afocal telescope, the 3X Tactical Lens with F/1.5 optics mounts to the objective lens of many night vision devices with 1x magnification to convert them into 3x scopes or binoculars.
It can be screwed into PVS7 objective directly or attached quickly through removable adapters with rubber tightening rings to NVS7, NVS14, many US made PVS7, PVS14 and some other models. |
|

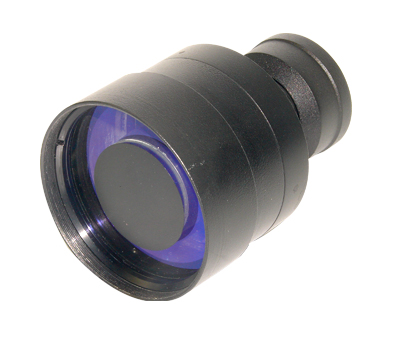

The 5X Tactical Catadioptric Lens with F/1. optics mounts to the body of the NVS7 goggles, turning them into the most compact and lightest night vision 5x binoculars.
|
|

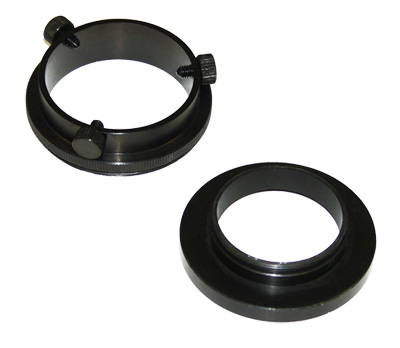

Camera Adapter Assembly
This attachment allows night-time photography and recording through night vision monoculars or binoculars NVS7/NVS14. The adaptor replaces rubber eyepiece. The adapter threads fit camcorders with 37mm thread and cameras with 52 mm thread in front of the objective lens. Other equipment requires standard upgrade or downgrade optical rings, which are available in any optical store at affordable pricing. |
|
NVS Coupler *
NVS Coupler is a clamp-on mechanical adapter with flip out feature that provides the ability to attach a night vision monocular (PVS 14/NVS 14) or goggles (PVS7/NVS7) to various day time instruments such as Laser Range Finders, Stabilized Image Binoculars, Daytime Weapon Scopes, etc. |
|

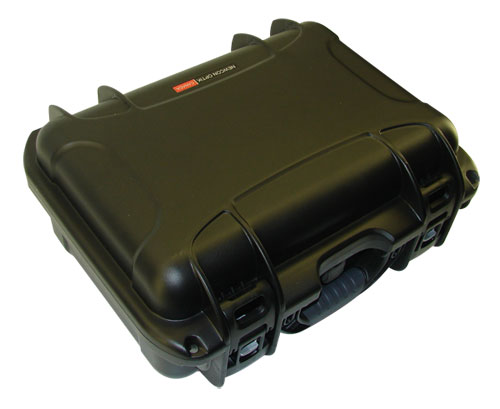

Hard Case
Hard water proof military standard case.
This case can hold any of your night vision systems or laser range finder systems along with all it's accessories comfortably and securely.
|
* Not for sale in USA. |
|
