X-Ray +
HRX 550™

Exceptional X-Ray Imaging Technology

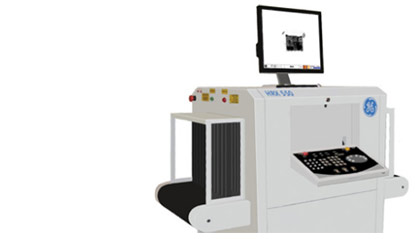

Compact X-Ray Inspection System
Morpho Detection’s HRX 550™ X-ray System is a cost-effective solution ideal for screening small parcels in airports, government offices, and other business applications. The tunnel size of 53 cm (20.9 in) wide by 35 cm (13.8 in) high maximizes the effective screening region in applications with a limited screening space. THE HRX 550 produces exceptional images while rapidly inspecting small articles.

PC-Based System, Flexibility to meet User Needs
The HRX 550™ runs on Windows XP Professional, utilizing the central structure, reduced hardware costs, minimal interfaces, easy upgrade paths, full integration and high reliability of a PC-Based System.

Robust Network Design
The HRX 550™ is equipped with high-speed Ethernet TCP/IP data communication capability. Images from any HRX model can be securely sent through the network to a central server where they can be viewed, stored, and printed. The HRX 550™ is also designed to network with other inspection systems to maximize a comprehensive checkpoint solution.

Standard Features

Automated image archiving - up to 50,000 images

User-friendly Image review - for up to last 100 images

System Health, Advanced continuous diagnostics

High penetration function

Density alert

Edge-enhancement imaging

Baggage counter

Color and black/white imaging

Bi-directional conveyor movement

Geometric image distortion correction

Horizontal and vertical imaging

Image annotation

Manual archiving of images in bitmap format

Organic and inorganic imaging

Clarify feature for improved resolution and penetration

Print image function

Programmable penetration and contrast levels

Pseudocolor and reverse monochrome

Real-time image manipulation

High-Resolution 17 inch LCD color monitor

User-defined access to image archive

2X to 32X User-selectable zoom

Z-number measurement
